Description
Overview
AX1500 Wi-Fi 6 Router
- Wi-Fi 6 Technology: Archer AX1500 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds: Archer AX1500 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)*
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.△§
- Triple-Core Processing: The 1.5 GHz tri-core processor ensures communications between your router and all connected devices are smooth and buffer-free.
- More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX1500 as it focuses signal strength to your devices using Beamforming technology and four antennas.
- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.‡
- Whole-Home Coverage with OneMeshTM – Works alongside TP-Link OneMeshTM products to create a flexible Mesh network.
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible: Archer AX1500 supports all previous 802.11 standards and all WiFi devices.
AX1500 Wi-Fi 6 Router
- Wi-Fi 6 Technology: Archer AX1500 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds: Archer AX1500 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)*
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.△§
- Triple-Core Processing: The 1.5 GHz tri-core processor ensures communications between your router and all connected devices are smooth and buffer-free.
- More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX1500 as it focuses signal strength to your devices using Beamforming technology and four antennas.
- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.‡
- Whole-Home Coverage with OneMeshTM – Works alongside TP-Link OneMeshTM products to create a flexible Mesh network.
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible: Archer AX1500 supports all previous 802.11 standards and all WiFi devices.
TP-Link Archer AX1500 AX1500 Wi-Fi 6 Router Specifications | |
---|---|
Wireless | |
Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11n/b/g (2.4 GHz) |
WiFi Speeds | AX1500 • 5 GHz: 1201 Mbps • 2.4 GHz: 300 Mbps |
WiFi Range | 2–3 Bedroom Houses 4× Fixed High-Performance Antennas Beamforming |
WiFi Capacity | High Dual-Band OFDMA Airtime Fairness 4 Streams |
Working Modes | Router Mode, Access Point Mode |
Security | |
Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
Guest Network | 1× 5 GHz, 1× 2.4 GHz |
VPN Server | OpenVPN, PPTP |
WiFi Encryption | WEP, WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Hardware | |
Processor | 1.5 GHz Triple-Core CPU |

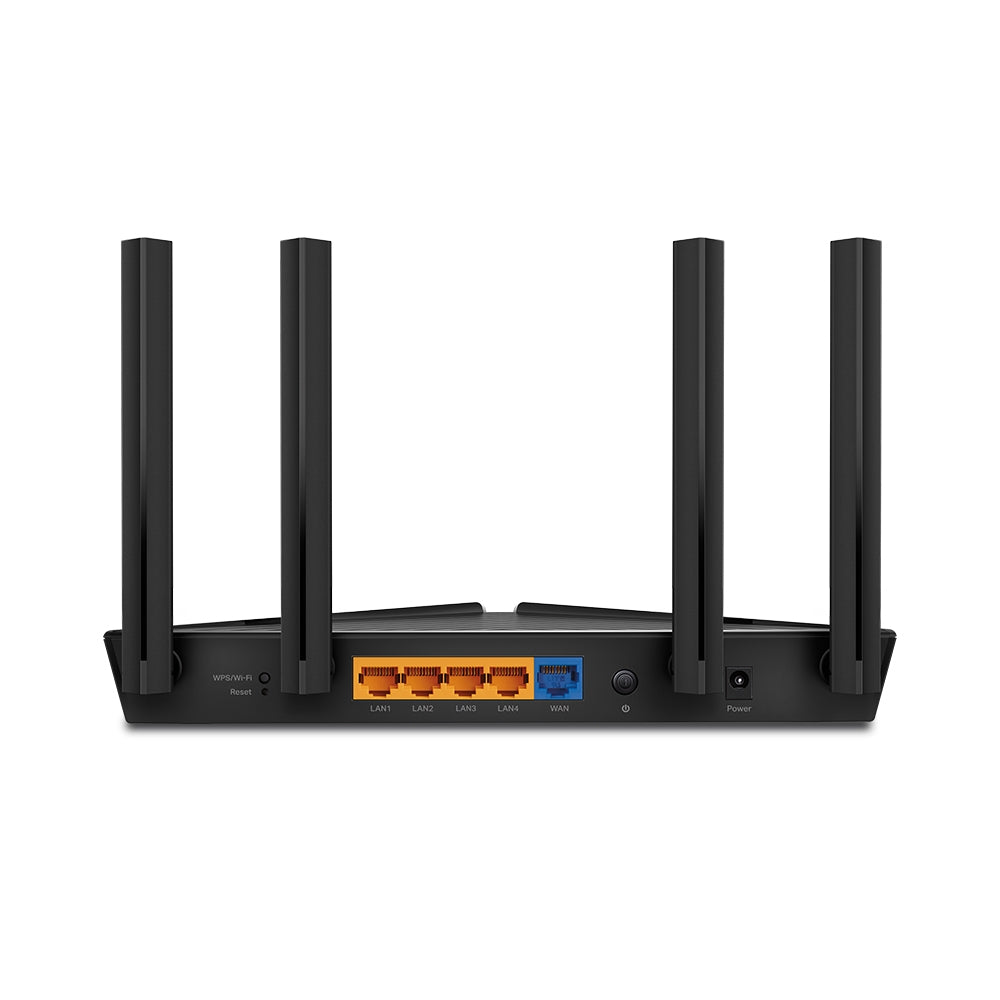

Ethernet Ports | 1× Gigabit WAN, 4× Gigabit LAN |
Buttons | WPS/Wi-Fi, Power, Reset |
Power | 12 V ⎓ 1 A |
Software | |
Protocols | IPv4, IPv6 |
EasyMesh | Compatible with EasyMesh and OneMesh networks |
Parental Controls | URL Filtering, Time Controls |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade, OTA Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
DHCP | Address Reservation, Client List, Server |
DDNS | TP-Link, NO-IP, DynDNS |
Management Features | Tether App, Webpage |
Other | |
System Requirements | • JavaScript-enabled browser: IE 11+, Firefox 12+, Chrome 20+, Safari 4+ • Cable or DSL Modem (if needed) • ISP Subscription (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | • Operating Temperature: 0–40°C (32–104°F) • Storage Temperature: −40–70°C (−40–158°F) • Operating Humidity: 10%–90% RH (non-condensing) • Storage Humidity: 5%–90% RH (non-condensing) |
Test Data | |
WiFi Transmission Power |
CE: • <20 dBm (2.4 GHz) • <23 dBm (5.15–5.25 GHz) FCC: • <30 dBm (2.4 GHz & 5.15–5.825 GHz) |
WiFi Reception Sensitivity |
5 GHz: • 11a 6 Mbps: −97 dBm • 11a 54 Mbps: −79 dBm • 11ac VHT20 MCS0: −96 dBm • 11ac VHT20 MCS11: −66 dBm • 11ac VHT40 MCS0: −94 dBm • 11ac VHT40 MCS11: −63 dBm • 11ac VHT80 MCS0: −91 dBm • 11ac VHT80 MCS11: −60 dBm • 11ax HE20 MCS0: −95 dBm • 11ax HE20 MCS11: −63 dBm • 11ax HE40 MCS0: −92 dBm • 11ax HE40 MCS11: −60 dBm • 11ax HE80 MCS0: −89 dBm • 11ax HE80 MCS11: −58 dBm 2.4 GHz: • 11g 6 Mbps: −91 dBm • 11a 54 Mbps: −74 dBm • 11n HT20 MCS0: −90 dBm • 11n HT20 MCS7: −73 dBm • 11n HT40 MCS0: −88 dBm • 11n HT40 MCS7: −70 dBm |
Physical | |
Dimensions (W × D × H) | 260.2 × 135.0 × 38.6 mm (10.2 × 5.3 × 1.5 in) |

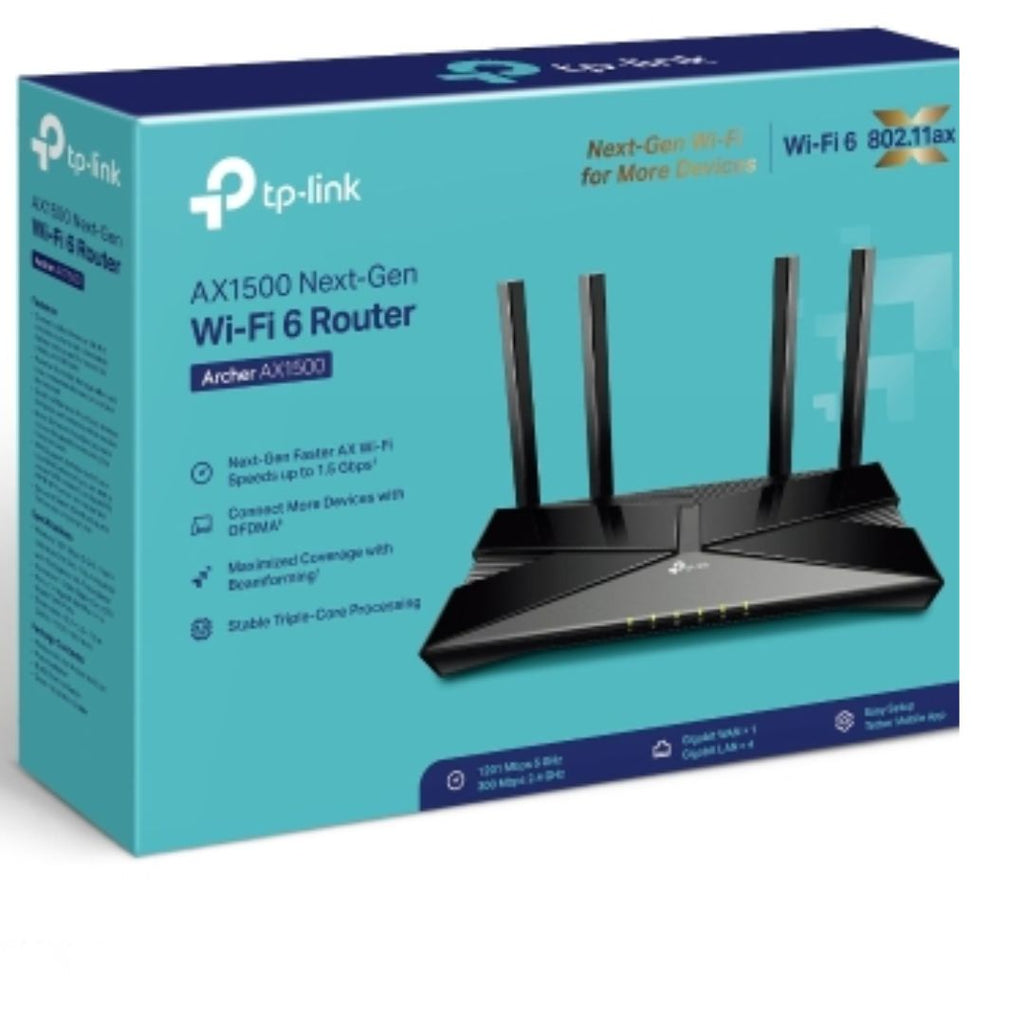

Package Contents | • Archer AX1500 Wi-Fi Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
